Ergonomic handguns increase adhesive application flexibility options and reduce operator fatigue.
Nordson AD-41 handguns meet a wide range of hot melt

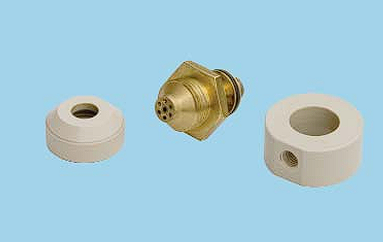

adhesive application needs with quick-connect nozzle adapters
and easy angle orientations to produce bead, swirl and spray
patterns.
The handgun’s internal RTD (resistance temperature detector)
provides consistent adhesive temperature and flow during
continuous or intermittent operation. Operating temperatures
ranging from 130° to 450°F (55° to 230°C) can be selected to
accommodate a wide variety of adhesive and substrate properties.
n Balanced handgrip and 360-degree swivel minimize operator
fatigue and promote accurate dispensing at any angle.
n Easy adhesive pattern changes, including top-feed, bottom
feed and down-apply extruded bead and spray patterns.
n Ever-cool handle promotes comfort and reduces burn risk by
enclosing heated components and flow paths within the gun
body, not the handle.
n Thumb safety switch helps prevent accidental dispensing.
Dual-ground paths protect the operator from injury and equipment
from damage. Electrical connections use make-first break-last
ground pins to prevent power up of the hose or handgun without
a grounded connection.
AD-41 handguns and hoses stand up to demanding bonding and
sealing applications. Durable hose connectors, nozzle adapters and
internal components provide long service life.
n Optional air control kit simultaneously manages on-off air
flow and adhesive flow for exceptional swirl or spray pattern
control and repeatability.
n Select Series™ AD-41-H Series guns and hoses are
also compatible with Proflex® melt units from Hot Melt
Technologies, Inc
